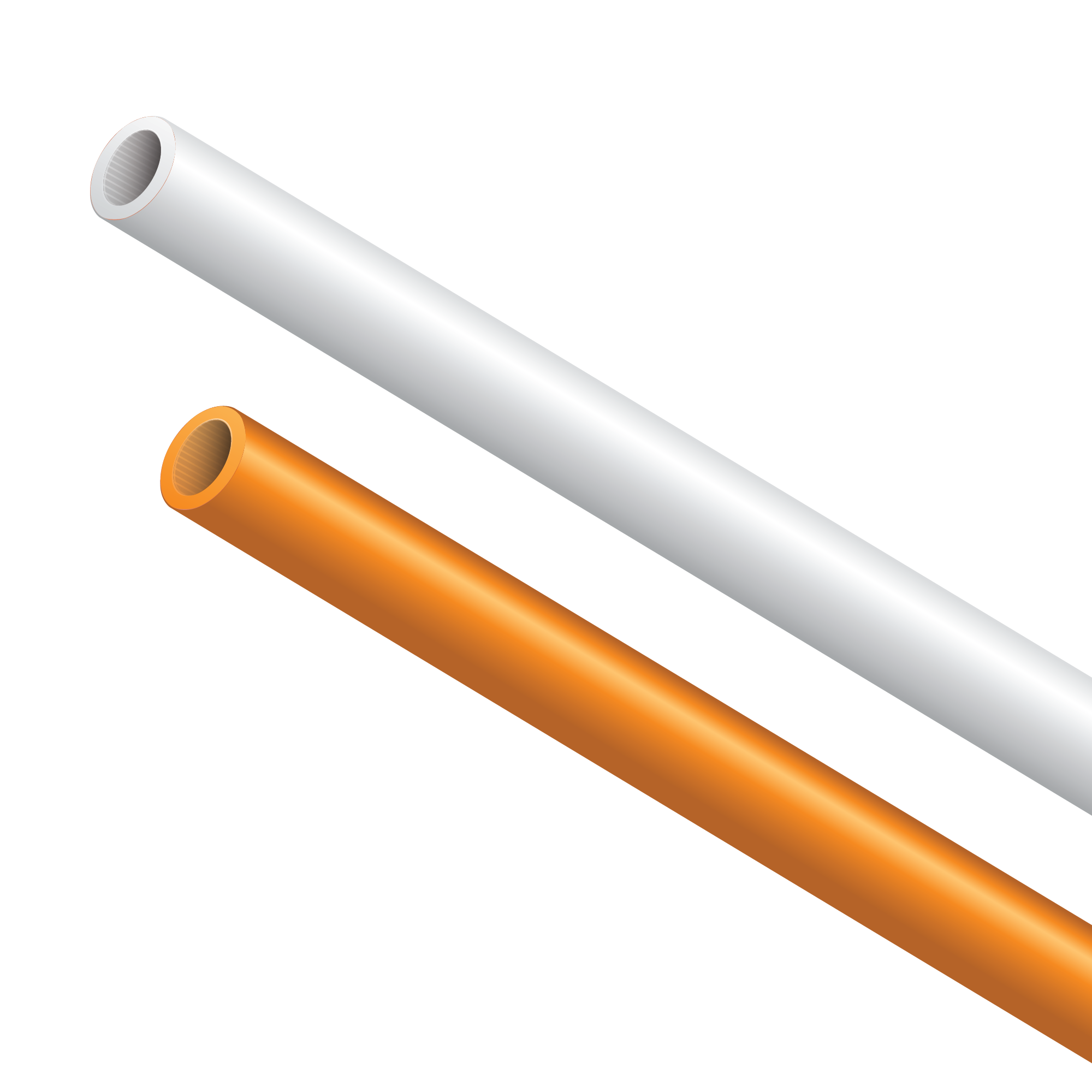

MicroDucts LSHF (DuraMicro LSHF)
MicroDucts LSHF (Low Smoke Halogen Free) are specifically designed for in-building applications where fire, smoke, and toxic fumes may pose a risk to human life and critical electronic equipment. Tested to stringent European standards, MicroDucts LSHF offer best-in-class fire performance when tested to EN 13501-1. Once installed, they enable seamless, cost-effective moves, adds, and changes (MACs) and end-to-end fibre jetting in indoor FTTH, LAN, data centre, and transportation networks.
Caractéristiques
- Made from quality flame retardant materials, formulated for long life expectancy
- Tested in accordance with EN 13501-1 for reaction to fire and achieved best-in-class fire performance and smoke generation rating 'B s1 d0' when mounted on gypsum plasterboard
- Halogen free, tested in accordance with EN 50642
- MicroDucts LSHF are tested by respected German test institute VDE and marked in accordance with EN IEC 61386-22 (VDE 0605-22):2021-12; EN IEC 61386-22:2021+A11:2021. Production is regularly audited by VDE.
- Available with SILICORE®, a permanently lubricated, coextruded inner lining that provides a lower inner coefficient of friction (<0.1) for maximum cable blowing length
- Available in 12 opaque RAL colors and natural, milky white color
- Designed for a fill ratio between a minimum of 50% and a maximum of 75%
Des détails
- Marquages en mètres/pieds
Caractéristiques
Choisissez la taille du MicroDuct (OD/ID) pour afficher les spécifications
Dimensions du MicroTube (mm)
Téléchargement
Downloads
Spécifications du produit
Couleurs
Rouge RAL 3020
Vert RAL 6001
Bleu RAL 5015
Jaune RAL 1018
Blanc RAL 9003
Gris RAL 7045
Marron RAL 8015
Violet RAL 4005
Cyan/turquoise RAL 6027
Noir RAL 9017
Orange RAL 2009
Rose RAL 3015
LSHF Blanc lait
- Campus / Santé / Industrie
- Centres de données
- Bâtiments
- Chemins de Fer / Tunnels
- Smart cities
- Aéroports
