DuraDrill

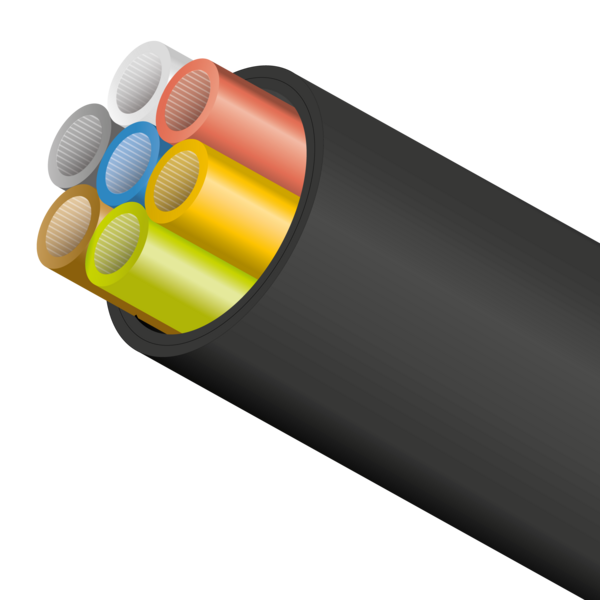

DuraDrill is designed for the most demanding applications, such as directional drilling or direct buried applications. With two jackets, this rugged product has exceptionally high pulling resistance and provides additional protection for the DuraMicro DB. DuraDrill is suitable for pulling applications with its high tensile strength.

DuraDrill is designed for the most demanding applications, such as directional drilling or direct buried applications. With two jackets, this rugged product has exceptionally high pulling resistance and provides additional protection for the DuraMicro DB. DuraDrill is suitable for pulling applications with its high tensile strength.

Features

Made from HDPE (High Density Polyethylene)
Very high pulling resistance
High scratch resistance during the pulling process
Pressure resistance minimum 15 bar
Silicore, permanently lubricated inner lining provides a lower inner coefficient of friction (<0.1) for maximum cable blowing length
Stiff construction prevents undulations of DuraDrill which optimizes pathways for fibre jetting
Optional detection wire is available upon request
Available in 12 opaque RAL colours according to IEC 304
Outer oversheath standard in orange, other colours available upon request
Detailed specifications on request

Details

Footage/Meter Markings
Internal Ribs
Direct Buried (DB)

DuraDrill is designed for the most demanding applications, such as directional drilling or direct buried applications. With two jackets, this rugged product has exceptionally high pulling resistance and provides additional protection for the DuraMicro DB. DuraDrill is suitable for pulling applications with its high tensile strength.

Quick Links

DuraDrill

Choose the Configuration (# of pathways) and MicroDuct Size

Configuration

MicroDuct (OD/ID)

Downloads

Colors

Red RAL3020

Red RAL3020

Green RAL6001

Green RAL6001

BlueRAL 5015

BlueRAL 5015

YellowRAL 1018

YellowRAL 1018

White RAL9003

White RAL9003

Grey RAL7045

Grey RAL7045

Brown RAL8015

Brown RAL8015

Violet RAL4005

Violet RAL4005

Cyan RAL6027

Cyan RAL6027

Black RAL9017

Black RAL9017

Orange RAL2009

Orange RAL2009

Pink RAL3015

Pink RAL3015

WaterBluer RAL5021

WaterBluer RAL5021

Options

Silicore®

Color Stripes

Installations

Directional Bore
No-Dig Technique

Applications
