Chamber HQS 400x800mm

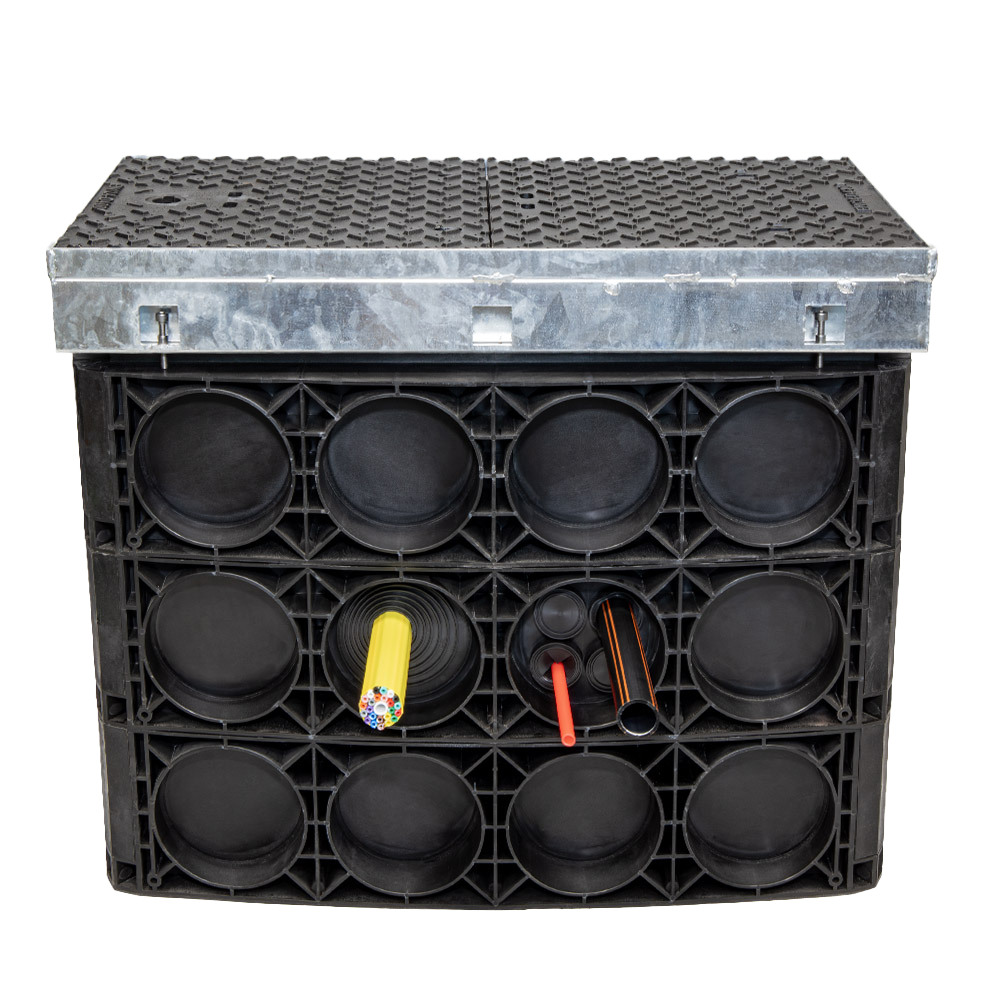

Chamber HQS provides an easier, more flexible, and more sustainable alternative to concrete and brick-built chambers with benefits to network owners and constructors alike.
Chambers are supplied in flat pieces or rings for efficient transportation and storage and easy on-site configuration in as little as 20 minutes. Prefabricated entry points can be removed quickly with a hammer (and without a drill) before a rubber seal is installed around the conduits, MicroDucts, or MicroDuct bundles entering the duct to prevent the ingress of soil or other debris. Finally, the metal frame for the Chamber HQS’ cover is adjustable to ensure the cover is installed at the correct height and angle.
Features
- Loading class of the body: B125
- Loading class of the covers: B125
- Standard: EN124-1:2015
- Lifetime expectancy: 25+ years
- STRONG: Vertical strength tested up to 40 tonnes
- SECURE: Lockable ductile iron cover
- COMPACT: Thin-wall design for a smaller installation footprint
- LIGHTWEIGHT: Installed in less than 20 minutes
- SIMPLE: Safe duct entry without drilling
- CONVENIENT: Adjustable cover frame for perfect positioning
Technical Details
| Description | Part # |
|---|---|
| Chamber HQS fixing part | 20095267 |
| Chamber HQS fixing pin | 20095271 |
| Chamber HQS sealing 40-150 mm | 20095268 |
| Chamber HQS sealing 4x50 mm | 20095269 |
| Chamber HQS segment 400 mm | 20095266 |
| Chamber HQS segment 800 mm | 20095265 |
| Chamber HQS metal cover/B125 400x800 mm | 20095273 |
| Chamber HQS metal frame 400x800 mm | 20095272 |
| Chamber HQS cover sealing 400x800 mm | 20095272 |
| Chamber HQS floor part 400x800 mm | 20095274 |
| Chamber HQS 400x800 B125, base kit | 20097289 |
| Chamber HQS 400x800 B125, additional segment | 20097290 |
