MicroTechnology

MicroTechnology

MicroTechnology is a term given to smaller conduits and fiber used in Inside and Outside Plant Construction (ISP and OSP). MicroDucts were developed as a solution to house fiber cables that were smaller in size, but still carried significant capacity. Today, MicroCables range from 6 to 432-fiber counts. The glass fibers are the same type as those used in traditional fiber cables, only the cable design has been altered to reduce the diameter of the cable sheath and support system. MicroDucts bundled under one sheath are called FuturePath and provide multiple ducts in one structure for future expansion of networks.

MicroDucts HDPE

MicroDucts Fire Retardant

FuturePath HDPE

FuturePath Flex

FuturePath Speed

Telecom Standard Ducts

Telecom Standard Ducts

DuraOpto ducts are made from top quality virgin High Density Polyethylene (HDPE) or other raw materials . There are many variations and options to optimize the product for various installations and applications. These ducts are used for backbone, city loop or feeder fiber network lines, where traditional fiber cables are installed by blowing over long distances. Our innovative designs and experience in the global market help make installations faster, easier, and more productive.

To complete your installation, Dura-Line offers a complete line of Accessories for both Telecommunication Networks and Power Networks.

MicroDucts and DuraOpto Ducts have a core range of accessories to fully install a conduit pathway. The core ranges includes selections for coupling, sealing, locating, and terminating the duct. Products are also available to aid in installing cable, including Gas Block connectors and Wall Entry Seals.

MicroDuct Accessories

Standard Duct Accessories

Search by Part Number or Item Name

These Applications demonstrate how conduit is used in everyday life throughout our modern world. Considered an integral part of the construction phase, the long-term return on investment on installing a flexible, easily scalable conduit network system is priceless. Multiple industries rely on clear, consistent, reliable communication technology. Learn more about how Dura-Line products are integral in providing connection.

Fiber Optic Sensing

Fiber to the Home

Multiple Dwelling Units

Rails / Tunnels

Renewable Energy

A problem or question?

Send your message to our product experts or sales representatives.

Dura-Line prides itself on creating cutting edge technology that solves unique customer installation scenarios. For nearly half a century, our team of experts has been hands-on involved in product research and installation training. In the Tech Center section, we share tips and techniques intended to help and engage engineers, installation crews, and end-users.

Industry Vocabulary

Technology Summit

A problem or question?

Send your message to our product experts or sales representatives.

What are you looking for?

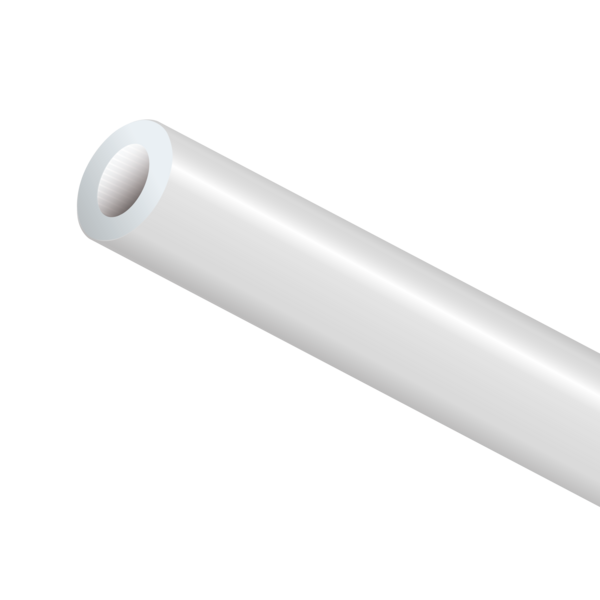

MicroDucts LSHF (DuraMicro LSHF)

MicroDucts LSHF (Low Smoke Halogen Free) are specifically designed for in-building applications where fire, smoke, and toxic fumes may pose a risk to human life and critical electronic equipment. Tested to stringent European standards, MicroDucts LSHF offer best-in-class fire performance when tested to EN 13501-1. Once installed, they enable seamless, cost-effective moves, adds, and changes (MACs) and end-to-end fibre jetting in indoor FTTH, LAN, data centre, and transportation networks.

MicroDucts LSHF (Low Smoke Halogen Free) are specifically designed for in-building applications where fire, smoke, and toxic fumes may pose a risk to human life and critical electronic equipment. Tested to stringent European standards, MicroDucts LSHF offer best-in-class fire performance when tested to EN 13501-1. Once installed, they enable seamless, cost-effective moves, adds, and changes (MACs) and end-to-end fibre jetting in indoor FTTH, LAN, data centre, and transportation networks.

Features

Made from quality flame retardant materials, formulated for long life expectancy
Tested in accordance with EN 13501-1 for reaction to fire and achieved best-in-class fire performance and smoke generation rating 'B s1 d0' when mounted on gypsum plasterboard
Halogen free, tested in accordance with EN 50642
MicroDucts LSHF are tested by respected German test institute VDE and marked in accordance with EN 61386-22 (VDE 0605 Teil 22):2011-12; EN 61386-22:2004+A11:2010. Production is regularly audited by VDE.
Available with SILICORE®, a permanently lubricated, coextruded inner lining that provides a lower inner coefficient of friction (<0.1) for maximum cable blowing length
Available in natural, milky white color
Designed for fill ratio of minimum 25% to maximum 75%

Details

Footage/Meter Markings

MicroDucts LSHF (Low Smoke Halogen Free) are specifically designed for in-building applications where fire, smoke, and toxic fumes may pose a risk to human life and critical electronic equipment. Tested to stringent European standards, MicroDucts LSHF offer best-in-class fire performance when tested to EN 13501-1. Once installed, they enable seamless, cost-effective moves, adds, and changes (MACs) and end-to-end fibre jetting in indoor FTTH, LAN, data centre, and transportation networks.

Quick Links

Specifications

Choose the MicroDuct size (OD/ID) to view the specifications

MicroDuct Size mm

Downloads

Colors

LSHF Milky White

LSHF Milky White

Options

Smooth or Ribbed Lining

Pre-installed Rope
