FuturePath HDPE

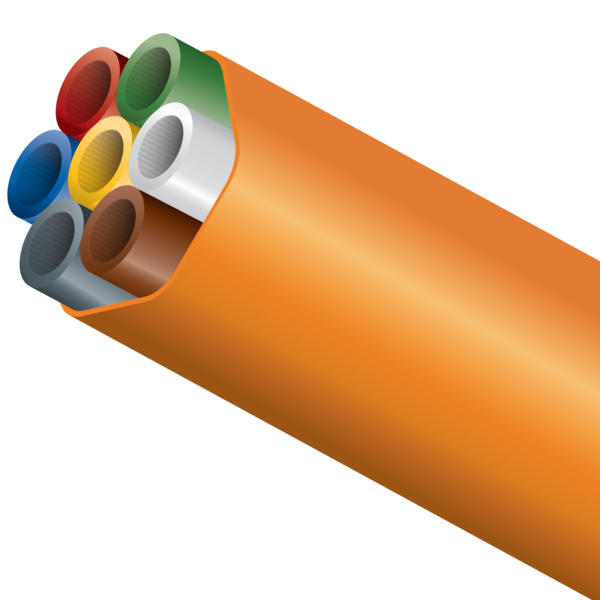

FuturePath HDPE (DuraMulti) is an easy-to-handle bundle of MicroDucts HDPE. The removable polyethylene oversheath allows access to individual MicroDuct pathways for uncomplicated branching. Utilising common conduit placement techniques, the unique shape simplifies direct-buried (DB) installations. FuturePath HDPE comes standard with an orange oversheath and individual coloured MicroDucts HDPE for easy identification.

FuturePath HDPE (DuraMulti) is an easy-to-handle bundle of MicroDucts HDPE. The removable polyethylene oversheath allows access to individual MicroDuct pathways for uncomplicated branching. Utilising common conduit placement techniques, the unique shape simplifies direct-buried (DB) installations. FuturePath HDPE comes standard with an orange oversheath and individual coloured MicroDucts HDPE for easy identification.

Features

MicroDucts HDPE (High Density Polyethylene)
Available in configurations from 2 to 24 MicroDuct pathways
Cost-effective – multiple pathways for one installation cost
Pressure resistance minimum 15 bar
Individual MicroDucts available with SILICORE®, a permanently lubricated, coextruded inner lining that provides a lower inner coefficient of friction (<0.1) for maximum cable blowing length
Engineered to endure impacts and meet standard pulling strength requirements common in direct-buried (DB) installations
Easy-to-remove outer sheath provides access to individual pathways
Individual MicroDucts inside designed for an optimal fill ratio between a minimum of 50% and a maximum of 75%

Details

Footage/Meter Markings
Direct Buried (DB)

FuturePath HDPE (DuraMulti) is an easy-to-handle bundle of MicroDucts HDPE. The removable polyethylene oversheath allows access to individual MicroDuct pathways for uncomplicated branching. Utilising common conduit placement techniques, the unique shape simplifies direct-buried (DB) installations. FuturePath HDPE comes standard with an orange oversheath and individual coloured MicroDucts HDPE for easy identification.

Quick Links

Specifications

Choose the Configuration (# of pathways) and MicroDuct Size

Configuration

MicroDuct (OD/ID)

Downloads

Colors

Red RAL3020

Red RAL3020

Green RAL6001

Green RAL6001

BlueRAL 5015

BlueRAL 5015

YellowRAL 1018

YellowRAL 1018

White RAL9003

White RAL9003

Grey RAL7045

Grey RAL7045

Brown RAL8015

Brown RAL8015

Violet RAL4005

Violet RAL4005

Cyan RAL6027

Cyan RAL6027

Black RAL9017

Black RAL9017

Orange RAL2009

Orange RAL2009

Pink RAL3015

Pink RAL3015

Options

Rip Cord

Internal Ribs

Smooth Interior Wall

Pre-installed Rope

Locate Wire
