DuraPack

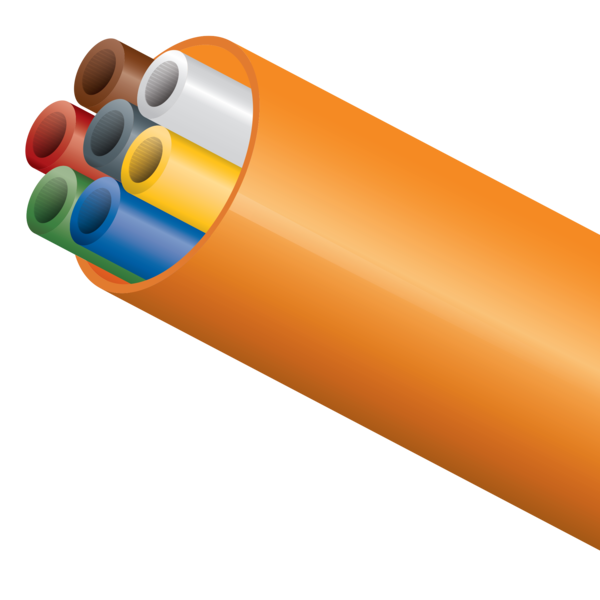

DuraPack features MicroDucts HDPE factory-installed in a larger standard conduit to enable efficient one-step underground installation, with increased stiffness and robustness compared with traditional MicroDuct bundles. DuraPack provides a flexible, scalable solution for fibre networks, with easy routing and dig-free future capacity upgrades.

DuraPack features MicroDucts HDPE factory-installed in a larger standard conduit to enable efficient one-step underground installation, with increased stiffness and robustness compared with traditional MicroDuct bundles. DuraPack provides a flexible, scalable solution for fibre networks, with easy routing and dig-free future capacity upgrades.

Features

High-Density Polyethylene (HDPE) MicroDucts and standard conduit
Cost-effective - multiple pathways for one installation cost
Pressure resistance minimum 15 bar
Individual MicroDucts available with SILICORE®, a permanently lubricated, co-extruded inner lining that provides a lower inner coefficient of friction (<0.1) for maximum cable blowing length
Stiff construction prevents undulation in loose MicroDucts which can impact jetting performance
Available in 12 opaque RAL colours with or without identification stripes
Individual MicroDucts designed for a fill ratio between a minimum of 50% and a maximum of 75%

Details

Footage/Meter Markings
Direct Install (DI)
Direct Buried (DB)

DuraPack features MicroDucts HDPE factory-installed in a larger standard conduit to enable efficient one-step underground installation, with increased stiffness and robustness compared with traditional MicroDuct bundles. DuraPack provides a flexible, scalable solution for fibre networks, with easy routing and dig-free future capacity upgrades.

Quick Links

Specifications

Select the DuraOpto size, MicroDuct size, and number of MicroDucts

Choose DuraOpto Size

Choose MicroDuct Size

Choose # of MicroDucts

Downloads

Colors

Red RAL3020

Red RAL3020

Green RAL6001

Green RAL6001

BlueRAL 5015

BlueRAL 5015

YellowRAL 1018

YellowRAL 1018

White RAL9003

White RAL9003

Grey RAL7045

Grey RAL7045

Brown RAL8015

Brown RAL8015

Violet RAL4005

Violet RAL4005

Cyan RAL6027

Cyan RAL6027

Black RAL9017

Black RAL9017

Orange RAL2009

Orange RAL2009

Pink RAL3015

Pink RAL3015

Options

Silicore®

Internal Ribs

Smooth Interior Wall
